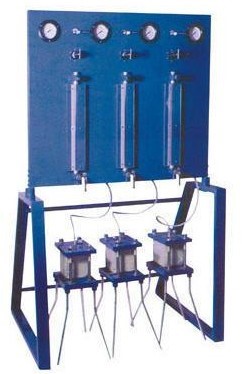

(100 mm DIA. Three Cell Model).
IS : 3085-1965.It consists of three sets 100 mm DIA cell mounted on a single control panel for testing independently three specimens 100 mm DIA x 100 mm high.
The equipment comprises the following :
-Three permeability cells for 100 mm dia specimen. Each cell consists of a metal cylinder with a ledge at the bottom and flanged at the top, one removable cover plate and a funnel.
Made of Gunmetal.
- A control panel with three independent control circuits for three permeability cell. Each control circuit consisting of a water reservoir, graduated gauge, glass tube, air inlet valve, pressure regulator, pressure gauge 0-15 kg/cm an air bleed valve, a drain crook for water reservoir and a shut-off valve for the permeability cell. A common air inlet for the three units is provided for connecting to the air compressor.(150 mm dia. Single Cell Model).IS :
3085-1965.The apparatus is CCA-58 but provided with a permeability cell for 150 mm dia x 150 mm high specimen. The equipment comprises the following :-One permeability cell for 150 mm dia specimens consisting of a metal cylinder with a ledge at the bottom and flanged at the top. One removable cover plate and a funnel. An air bleed valve is provided on the cover plate. Made of Gunmetal.-A control panel fitted with a water reservoir, graduated gauge glass tube, air inlet valve, pressure regulator, pressure gauge 0-15 kg/cm, an airbleed valve, a drain cock for water reservoir and a shut off valve for the permeability cell.
